PAGE
2 CONTINUED
FROM PAGE 1
CACHE OF 2
LARGE NOTCHED BIFACES
OLIVE BRANCH
SITE
SOUTHERN
ILLINOIS
EARLY
ARCHAIC
EST. 9,500 PLUS YEARS AGO
PAGE 1
OF 2 PAGES
COPYRIGHT
AUGUST 31, 2003 PETER A. BOSTROM
CLICK ON PICTURE FOR LARGE IMAGE
NERALICH

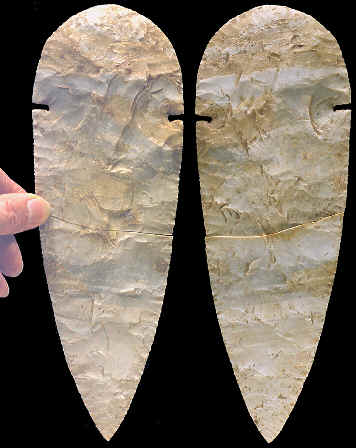

CACHE NOTCHED POINT
OLIVE BRANCH SITE
ALEXANDER COUNTY, SOUTHERN ILLINOIS
This notched biface was found broken. The break may
have been caused by ground pressure or a combination of a
flaw in the stone & ground pressure or freezing and thawing.
This notched biface is very similar to the slightly larger one
it was found with and was
most probably made by the same craftsman. They were both made of
Burlington chert. This one measures approximately 11 inches (27.9
cm) long and 4 inches ( 10.2 cm) wide |
|
The Neralich
cache was discovered approximately 8 inches (20.3 cm) below the present
level of the old railroad cut. The original surface in this area, before
the railroad tracks came through, is estimated to have been
approximately 24 to 28 inches (approx. 60 to 70 cm) above the cache.
|
CREDIT LIZ KASSLY
FIND

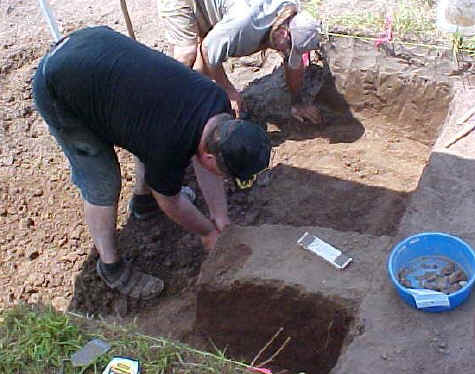

SITE OF THE NERALICH CACHE
OLIVE BRANCH SITE
ALEXANDER COUNTY, SOUTHERN ILLINOIS
In and around this unexcavated block is where the two large notched
bifaces were found. This area of the Olive Branch site is called the
Elbow Sector after the configuration of the rock outcropping in this area. |
|
The Neralich
cache was found in an area of the Olive Branch excavations called the
Elbow Sector. The area is named after the configuration of rock that
curves on the surface in an elbow shape.
|
CLICK ON PICTURE FOR LARGE IMAGE

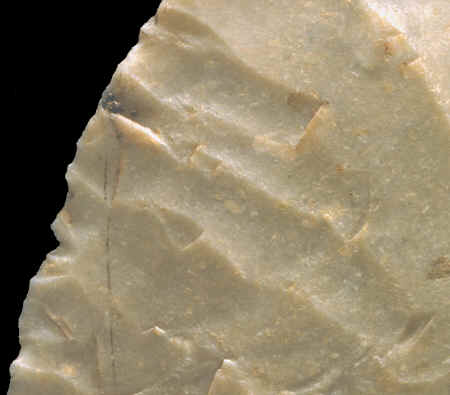

CLOSE-UP OF PRESSURE FLAKING
ON LARGEST NOTCHED POINT
OLIVE BRANCH SITE
ALEXANDER COUNTY, SOUTHERN ILLINOIS
This picture shows a magnified view of the edge of the larger of the two notched
bifaces from the Olive Branch Neralich cache. This style of narrow and parallel
pressure flaking is usually associated with Early Archaic stone tool
manufacturing. The longest flake scar in this picture measures
almost one inch (2.5 cm) long. |
|
Several
caches of points have been found on the Olive Branch site, most of them
Daltons. One other
cache of notched points, besides the Neralich cache, were found at Olive Branch. This cache includes
six "Thebes-like" points that were found by the Beasley family
sometime in the 1960's. The points in this cache were much smaller,
around 6 inches (15.2 cm) or slightly above. One of the main
similarities between these different cache points is the notching. Both
have narrow notches that angle in between 65 to 85 degrees with a
slightly steeper downward angle right at the end of the notches. The
notching is also farther down from the ends of the bases than most
points.
|
CORNER NOTCHED
POINT
FROM THE BEASLEY CACHE OF SIX POINTS
OLIVE BRANCH SITE
ALEXANDER COUNTY, SOUTHERN ILLINOIS
PRIVATE COLLECTION
The picture above
shows a cast of one of the six "Thebes-like" points that were found by the Beasley family
sometime in the 1960's on the Olive Branch site. Notice the similarity
of the notching to the large Neralich cache points. They are narrow
notches that curve at the end of the notch towards the point. The
Beasley cache of notched points were made of white Burlington chert.
This example measures 6 1/2 inches (16.5 cm) long.
|
|
Both of these two large
notched bifaces were made from Burlington chert.
|
CLICK ON
PICTURE FOR LARGE IMAGE
UNIQUE NOTCHES ON NERALICH
CACHE POINTS
BOTH NOTCHES ON LARGEST
POINT
OLIVE BRANCH SITE
ALEXANDER COUNTY, SOUTHERN ILLINOIS
This picture shows a magnified area of both notches on the larger of
the two Neralich cache bifaces from Olive Branch. These notches are very
similar to the notches on the six "Thebes-like" points in
the Beasley cache. The one striking difference is the abrupt downward
angle at the end of the notch on both of the Neralich cache points.
The Beasley cache points also have narrow notches like these but the
downward angle at the end of the notches is not so abrupt. These
notches are very unique. They may have been made with a copper punch.
They measure 7/16 and 1/2 inches (1.1 &
1.2 cm) long. |
|
The two
Neralich cache points were found in an area of soil that was stained
with red ochre. The red ochre was not found in a thick concentrated form
but, as Dr. Gramly has stated, " the red ochre was thinly
represented in the soil, it could have been in a liquid form when it was
applied to the area."
|
CLICK ON
PICTURE FOR LARGE AREA IMAGE
RED OCHRE ON THE SURFACE OF LARGEST
NERALICH CACHE NOTCHED POINT
OLIVE BRANCH SITE
ALEXANDER COUNTY, SOUTHERN ILLINOIS
The two large Neralich cache bifaces were found in a layer of
red ochre stained soil. This picture shows a magnified area on the surface
of the largest of the two bifaces where some of the ochre is adhering
to the stone. The area of red ochre in this picture measures 1.7 mm
across. Gramly reports that the six Beasley
"Thebes-like" cache points also had traces of red ochre on their
surfaces. |
|
The
Neralich cache is an important discovery. The fact that they were found
in a controlled scientific excavation makes them all the more unique.
The majority of all caches are found by farmers, surface collectors and
by private digging. The knowledge that will be added to the
archaeological record from this discovery is significant.
|
"REFERENCES"
1985,
Perino, Gregory,
"Selected Preforms, Points, and Knives of the North American Indians,
Vol. I," Thebes, pp. 376, 377 & 378.
1995, Gramly, Richard Michael, "VI. The Olive Branch Site: The
Initial Archaic Period In Southern Illinois," p.62.
2002, Gramly, Richard Michael, "Olive Branch, A Very Early
Archaic Site On The Mississippi River."
Personal communications with Mike Gramly.
Personal communications with Larry Kinsella.
|
